Drum Chippers Biomass Energy Machine Electric Motorized 220V

Drum Chippers Biomass Energy Machine Electric Motorized 220V

Drum Chippers Biomass Energy Machine Electric Motorized 220V
video
Drum Chippers Biomass Energy Machine Electric Motorized 220V
Product Details:
Place of Origin: China
Brand Name: FAR
Certification: CE ISO9001
Model Number: BX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: iron pallet
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Material: Steel Motor: Siemens
Bearing: SKF Weight: 4700kg
Warranty: 1 Year Condition: New
Output: Call For Details
High Light:

Drum Chippers Biomass Energy Machine

,

Electric Motorized Drum Chippers

,

Biomass Fuel Industry Drum Chippers 220v

220V Electric Motorized Drum Chippers For Biomass Fuel Industry

Product Description

Featrues

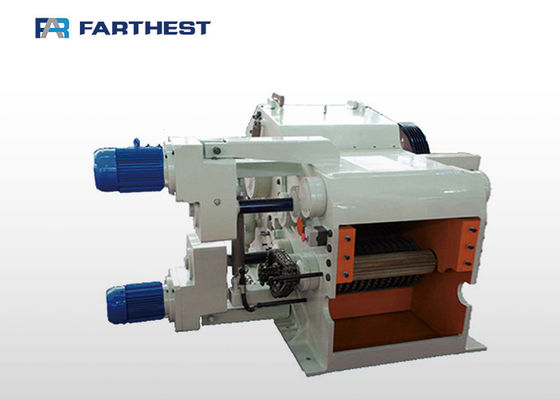

1. The serial drum chippers of our company are a kind of special equipment that produces technological wood chips. Widely used in the production of medium-density fiberboard., ordinary shaving board and in the papermaking industry etc., it is used as the main machine of material-preparing process of wood chips, could be used as independent wood chip production equipment as well.

2. The raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder (branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).

3. The serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both at home and abroad.

4. The serial drum chippers could meet the production capacity between 3 and 130 cubic meters of wood chips per hour. Users could select the suitable type of machine according to requirements.



Main Technical Parameters



Model

Parameters

BX216

BX218

BX218D

BX2110

BX2113/11

Rotor Diameter(mm)

650

800

800

1000

1300

Number Of Flying Knives(pc)

2

2

2

2×2

3×2

Feed Opening(mm)

180×500

225×680

240×750

330×1050

400×1050

Knife Rotor Speed(rpm)

590

650

650

550

442

Feed Speed(m/min)

37.2

37

38

38

43

Stock Processed

Max Diameter(mm)

120

160

160

210

230

Chip Length(mm)

30

30

20-30

30

30

Capacity(m3/h)

10

15-20

38

75

108

Main Drive Motor Power(kw)

55

110

132

220

315

Feed Roller Motor Power(kw)

2×3

4×2

4×2

7.5×2

11×2

Pump Motor Power(kw)

---

---

0.55

2.2

3

Machine Net Weight(kg)

4070

7000

7500

12500

18000



Details



Drum Chippers Biomass Energy Machine Electric Motorized 220V 0 Drum Chippers Biomass Energy Machine Electric Motorized 220V 123P1030958P1030943
