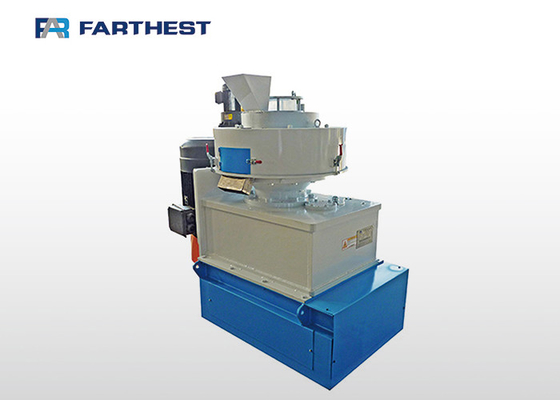

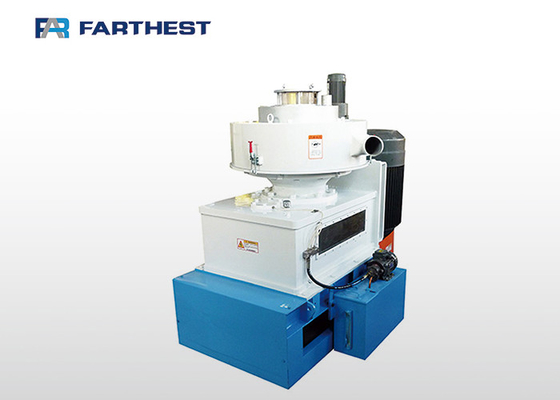

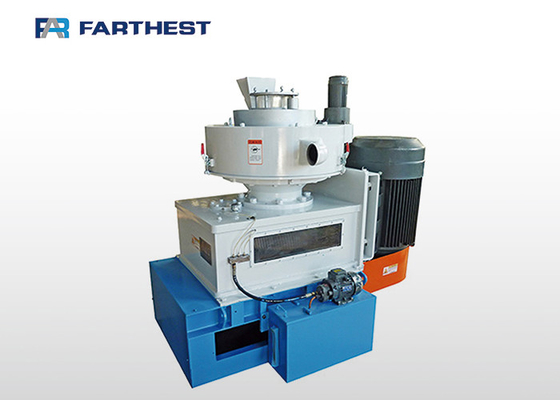

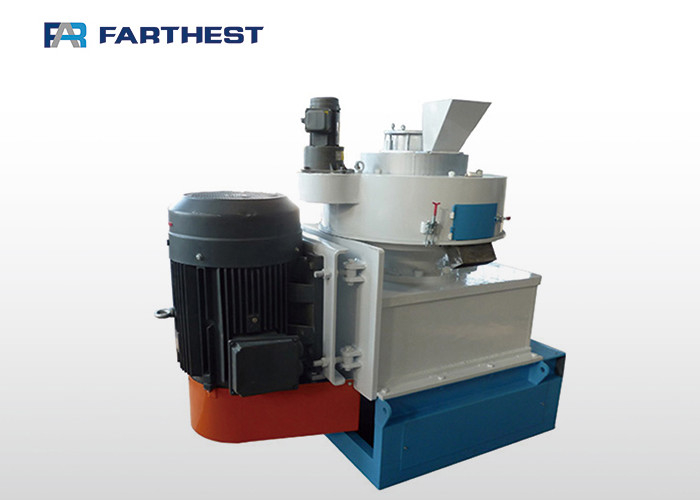

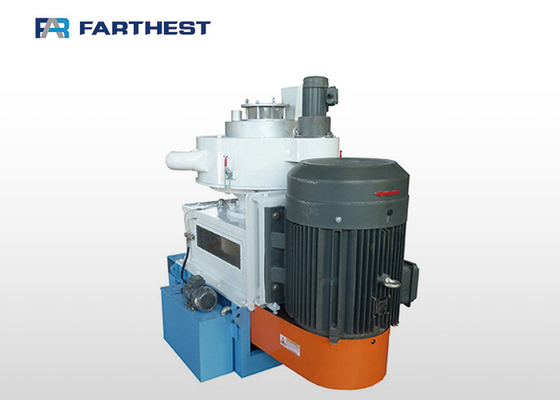

Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment

Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment

    • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment
    • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment
    • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment
    • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment
    • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment
  • Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment

    Product Details:

    Place of Origin: China
    Brand Name: FAR
    Certification: CE ISO9001
    Model Number: MXZLH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Iron Pallet
    Delivery Time: 30 Days
    Supply Ability: 20 sets Per Month
    Contact Now
    Detailed Product Description
    Power: 55kw Bearing: SKF
    Material: Steel Warranty: 1 Year
    Motor: Siemens Capacity: 0.8-1.2tph

    Vertical Ring Die Biomass Energy Machine , Wood Pellet Making Equipment



    Product Description

    Features

    1. Vertical driving Structure is adopted for high efficiency;

    2. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving,

     low noise and long service life;

    3. Die is fixed inside machine; roller, driven by the motor, can reduce the driving consumption and

     fault rate;

    4. Improving the porosity of the die can reduce the consumption cost of dies, rollers and other

    spare parts;

    5. Roller assembly is equipped with bigger oil storage tank to ensure the smooth working of  the

     rollers;

    6. The gear box is connected to the recycling cooling equipment; the giant transparent window is

    used for observing the situation inside the gear box.



    Main Technical Parameters

    Model

    Parameters

    MXZLH470

    MXZLH550

    MXZLH680

    MXZLH780

    MXZLH980

    Capacity(t/h)

    0.8-1.2

    1.5-2.5

    2.5-3.5

    3.0-4.0

    4.5-5.5

    Power(kw)

    55

    110

    160

    220

    315



    Details

     wood pellet-2EN

    wood pellet-3EN

    5

    6
