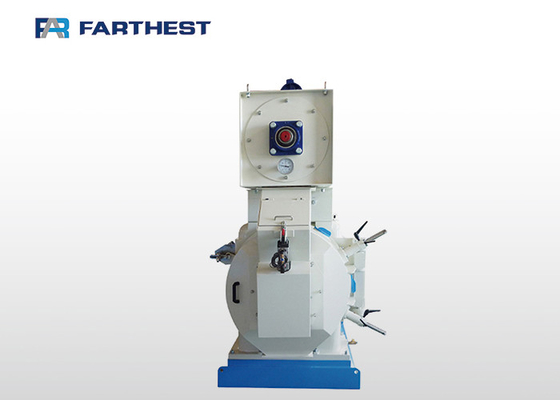

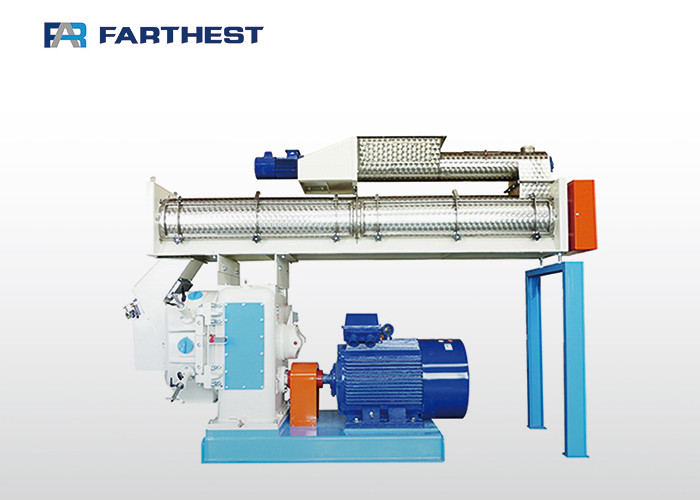

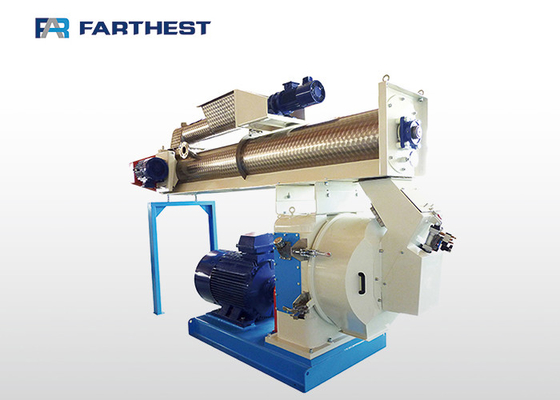

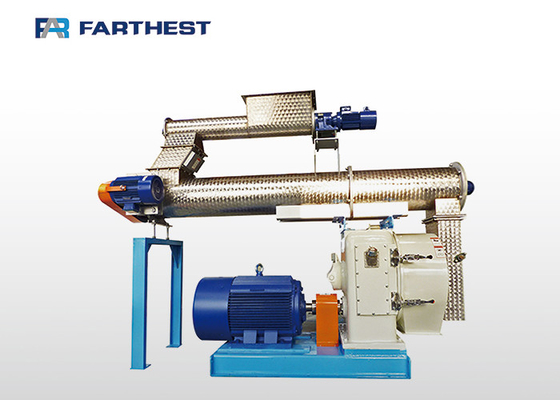

Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure

Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure

    • Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure
    • Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure
    • Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure
    • Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure
  • Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure

    Product Details:

    Place of Origin: China
    Brand Name: FAR
    Certification: CE ISO9001
    Model Number: SZLH400(420)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: iron pallet
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 50 sets per year
    Contact Now
    Detailed Product Description
    Capacity: 3-14tph Power: 75/90/110kw
    ID Of Die: 400/420mm Pellet Size: 2-18mm
    Motor: Siemens Bearing: SKF
    Condition: New Color: Blue And White
    High Light:

    feed pellet machine

    ,

    extruder pellet machine

    Calf Feeding Fodder Pellet Making Machine Variable Pitch Anti Bridging Structure





    Product Description

    Features

    1. Gear directly-connecting driving is adopted for high efficiency;
    2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
    3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
    4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving,

     low noise and long service life;
    5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;
    6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system

    is available to ensure reliable bearing lubrication;
    7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the

    die and quill flange, resulting in convenient and quick disassembling of die;
    8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and

    long service life;
    9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling

    and assembling and more reliable use.



    Main Technical Parameters

    Parameters

    Model

    Output

    (t/h)

    Main Power

    (kw)

    Power Of Conditioner
    (kw)

    Power Of Feeder
    (kw)

    ID Of Die
    (mm)

    Pellet Size
    (mm)

    SZLH400

    3-12

    75/90

    5.5

    1.5

    400

    2-18

    SZLH420

    3-14

    90/110

    5.5

    1.5

    420

    2-18





    Details

    P1010410

    P1040225

      P1000998
