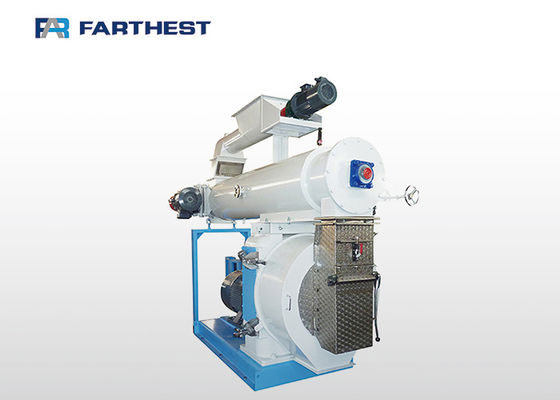

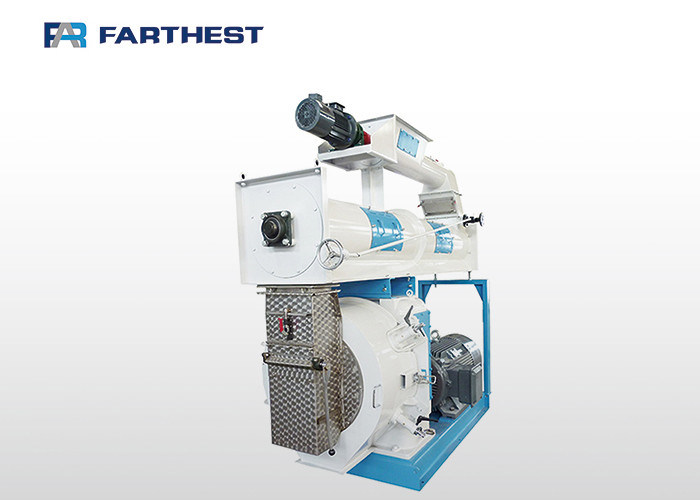

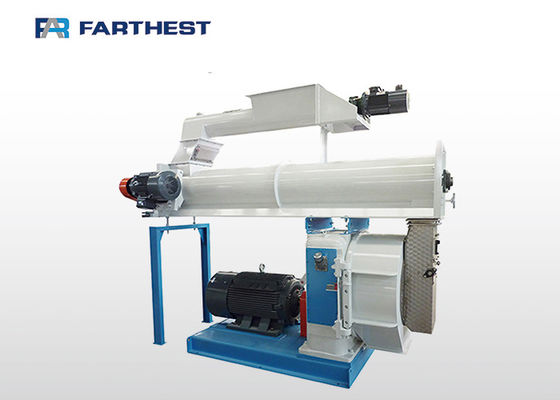

Automatic Cow Feed Processing Feed Pellet Making Machine With SKF Bearing

Automatic Cow Feed Processing Feed Pellet Making Machine With SKF Bearing

Automatic Cow Feed Processing Feed Pellet Making Machine With SKF Bearing

Product Details:

Place of Origin: China
Brand Name: FAR
Certification: CE ISO9001
Model Number: SZLH508

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: iron pallet
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
ID Of Die: 508mm Motor: Siemens
Bearing: SKF Power: 110kw
Voltage: 380V Capacity: 5-20tph
Warranty: 1 Year Condition: New





High Protein Cattle Feed Pellet Production Equipment With Siemens Motor







We are manufacturing various pellet mill and complete project, such as high quality fish feed pellet mill, aqua feed pellet machine, shrimp pellet machine, chicken feed pellet machine, cattle feed pellet machine, crab feed pellet mill and so on.



Product Description

Features of Pellet Production Machine

1. Gear directly-connecting driving is adopted for high efficiency;

2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;

6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;

7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.



Main Technical Parameter of Pellet Press Machine

Model

Output

(t/h)

Main Power

(kw)

Power Of Conditioner

(kw)

Power Of Feeder

(kw)

ID Of Die

(mm)

Pellet Size

(mm)

SZLH508

6-20

110/132/160

7.5

1.5/2.2

Φ508

Φ2-18



Details



P1040226P1040286
MEMO0002P1000998 P1010410



 P1010546 1
