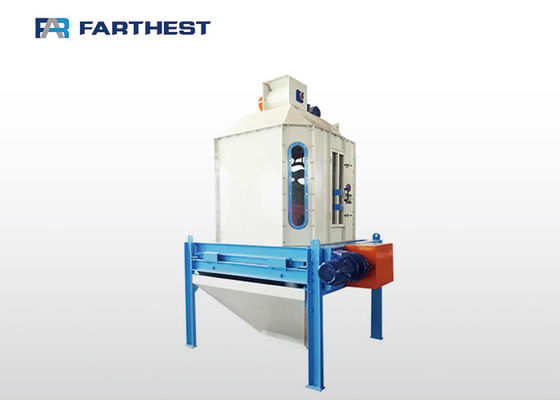

Long Life Cattle Feed Process Poultry Feed Mill Machine Counterflow Cooler

Product Details:

Place of Origin:	China
Brand Name:	FAR
Certification:	CE ISO9001
Model Number:	SKLN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Iron Pallet
Delivery Time:	30 Days
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Cooling Time:	Less Than 10-15Mins	Bearing:	SKF
Warranty:	1 Year	Power:	1.5KW
Output:	3-20tph	Motor:	Siemens
Volume(m³):	1.5-8
High Light:	animal feed mill equipment , poultry feed mill equipment

Long Life Cattle Feed Process Poultry Feed Mill Machine Counterflow Cooler

We are manufacturing feed mill complete project,biomass processing complete project,Compound fertilizer processing. We can also provide Grinding and Pulverizing; Dosing and Mixing; Pelleting; Extruding and Expanding; Cooling, Crumbling and Sieving; Stabilizing, Drying, Coating and Bagging off; Compact feed mill; Cleaning, Magnets and Aspiration; Conveying and Other universal equipment.

Product Description

Features:

1. The counterflow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;

2.Slide reciprocating discharger has smooth and reliable discharging, low residue;

3.Low power consumption, ease of operation;

4.Pellet temperature after cooling is less than +3°C~5°C ambient temperature;

5. Capable of cooling pellets.

Main Technical Features:

Model Parameters	SKLN1.5	SKLN2.5	SKLN4	SKLN6	SKLN8
Volume(m³)	1.5	2.5	4.0	6.0	8.0
Capacity(t/h)	3	5	10	15	20
Cooling time(min)	Less than 10-15Mins
Temperature after Cooling(°C)	Not higher than ambient temperature +3~5
Aspiration(m³/min.t)	34
Power(kw)	0.75	1.10	1.50	1.50	1.50
Power of Airlock (kw)	0.55	0.55	0.75	1.1	1.5
