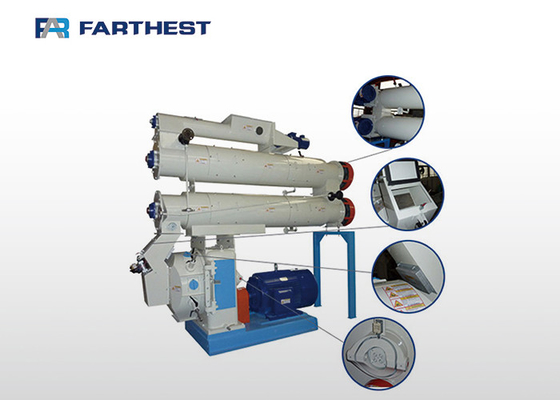

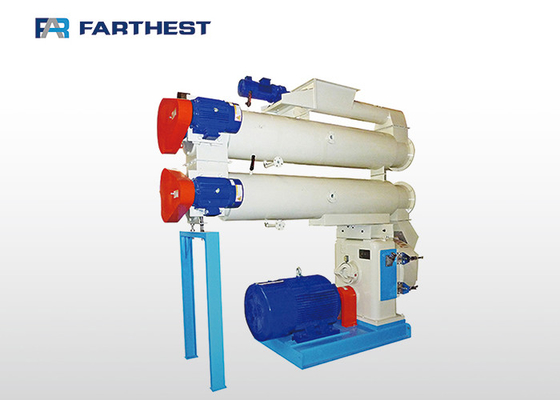

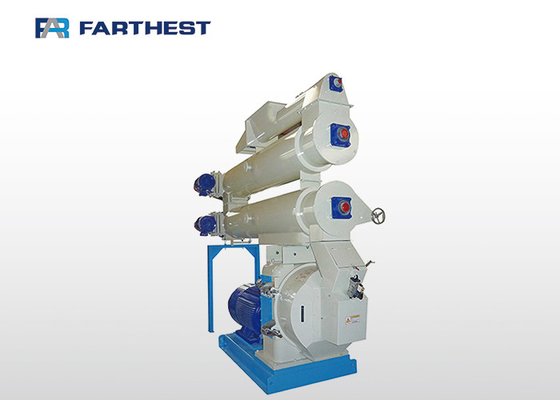

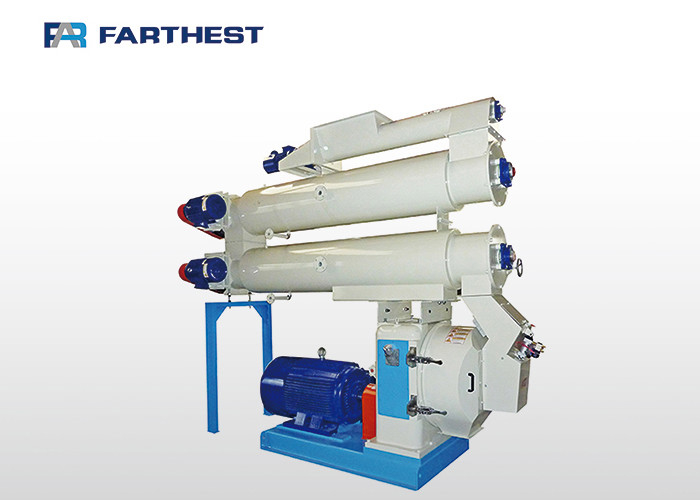

Stainless Steel Salmon Siemens Feed Granulator Machine

Stainless Steel Salmon Siemens Feed Granulator Machine

  • Stainless Steel Salmon Siemens Feed Granulator Machine
  • Stainless Steel Salmon Siemens Feed Granulator Machine
  • Stainless Steel Salmon Siemens Feed Granulator Machine
  • Stainless Steel Salmon Siemens Feed Granulator Machine
Stainless Steel Salmon Siemens Feed Granulator Machine
Product Details:
Place of Origin: China
Brand Name: FAR
Certification: CE ISO9001:2010
Model Number: SZLH400(420)b2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30000 per set
Packaging Details: iron pallet
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: call for details
Contact Now
Detailed Product Description
Color: White And Blue Power: Kw
Voltage: 380V Warranty: 1 Year
Application: Feed Factory Type: Pellet Machine
Motor: Siemens
High Light:

1.5kw Feed Granulator Machine

,

2mm Feed Granulator Machine

Features of Granulator Machine

1. Gear directly-connecting driving is adopted for high efficiency;

2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

5. Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and CNC;

6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;

7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use.



Main Technical Parameters of Feed Pellet Mill

Parameters

Model

Output

(t/h)

Main Power

(kw)

Power Of

Conditioner(kw)

Power Of Feeder

(kw)

ID Of Die

(mm)

Pellet Size

(mm)

SZLH400b2 3-12 75/90 5.5×2 1.5 Φ400 Φ2-18
SZLH420b2 3-14 90/110 5.5×2 1.5 Φ420

Φ2-18







Stainless Steel Salmon Siemens Feed Granulator Machine 0Stainless Steel Salmon Siemens Feed Granulator Machine 1Stainless Steel Salmon Siemens Feed Granulator Machine 2
