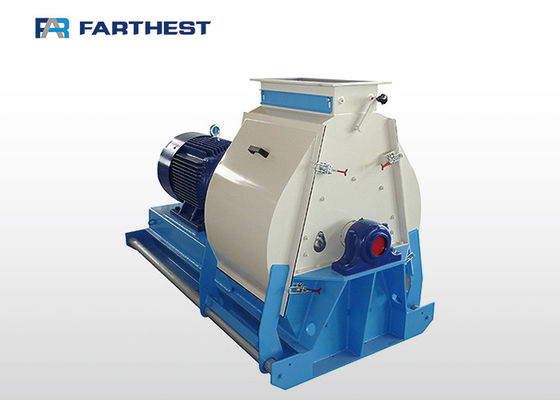

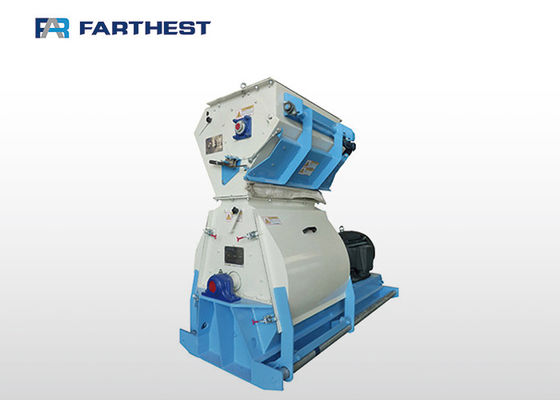

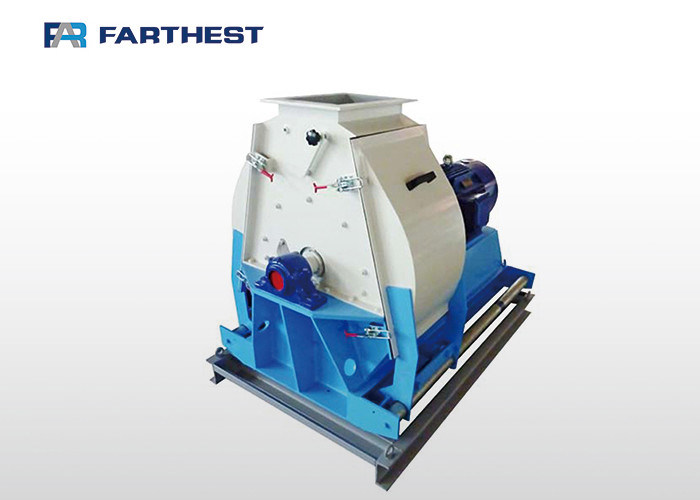

55kw Siemens Motor Drive Hammer Mill Feed Grinder

55KW Siemens Motor Fish Feed Hammer Mill Feed Grinder

Features of Corn Mill Machine:

1. It is used for grinding raw materials of large and medium livestock and aqua feed mills. It can also be used for grass and pharmacy fine grinding. The granular raw materials, such as corn, sorghum, wheat, beans, etc can be ground;
2. It is derived from the tear circle type hammer mill and efficiency can be improved by 45%-90% compared to universal hammer mill;
3. It can produce qualified aqua feed under full load with 0.8,1 screen and reduce jam significantly. Both coarse and fine grinding can be completed without changing screens;
4. The right aspiration can make materials go through screen quickly, reduce temperature of grinding chamber and increase output effectively.

Main Technical Parameters of Grain Hammer Mill:

Parameters Model	Dia. Of Rotor (mm)	Width Of Grinding Chamber (mm)	Speed Of Rotor (r/min)	Speed Of Beater (m/s)	No. Of Beater (pc)	Power (kw)	Aspiration (m³/min)		Output (t/h)
							Coarse	Fine
SFSP668-Ⅰ	660	380	2970	94	56	22/30	30	34	5-6
SFSP668-Ⅱ	660	450	2970	94	64	45/55	40	45	7-12
SFSP668-Ⅲ	660	600	2970	94	88	55/75	48	53	10-15
	660	750	2970	94	112	90/110	60	66	15-20

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter Φ3mm, hole-opening rate not less than 33%.
