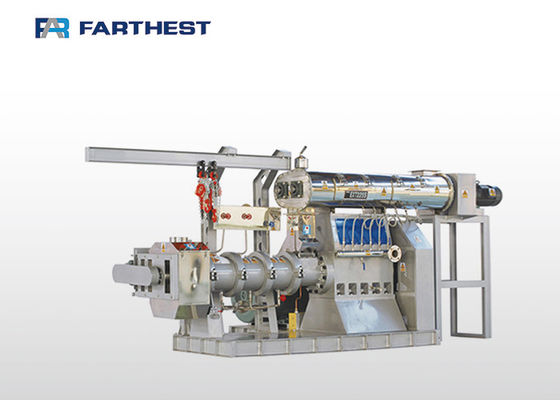

Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment

Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment

    • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
    • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
    • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
    • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
    • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment
  • Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment

    Product Details:

    Place of Origin: China
    Brand Name: FAR
    Certification: CE ISO9001
    Model Number: SPHS-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: iron pallet
    Delivery Time: 45 days
    Supply Ability: 30 sets per year
    Contact Now
    Detailed Product Description
    Main Power: 55-315kw Motor: Siemens
    Warranty: 1 Year Material: Steel
    Bearing: SKF Output: 0.5-10tph

    Double Screw Floating Fish Feed Making Machine , Aqua Feed Steam Extruder Equipment



    Extruder of all sorts can be offered by Farthest Machinery, such as dryer type extruder, wet type extruder, single screw extruder, double screw extruder and so on. It can be used widely in both floating aquatic feed and sinking aquatic feed.


    Product Description

    Features

    1. Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.



    2. The gearbox can stand strong torque and thrust up to 400hp.



    3. Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.



    4. Fast replacing mechanism for die and screw and on-line adjustment for cutter.



    5. Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of sinking/floating feed.



    Main Technical Parameters

        Parameters

    Model

    Main Power

    (kw)

    Feeder Power

    (kw)

    Conditioner Power (kw)

    Cutter Power (kw)

    Capacity

    (t/h)

    SPHS95S

    55

    1.5

    5.5

    3

    0.5~1.2

    SPHS98S

    75

    1.5

    5.5

    3

    0.6~1.6

    SPHS118S

    90

    1.5

    11

    4

    0.8~2.0

    SPHS120S

    110

    1.5

    11

    4

    1.5~2.2

    SPHS145S

    132

    1.5

    15

    5.5

    2.0~4.0

    SPHS148S

    160~200

    1.5

    15

    5.5

    3.0~6.0

    SPHS150S

    200~315

    2.2

    18.5

    5.5

    8.0~10.0



    Details

    tse128P1050732P1050731(1)
     IMG_2333
