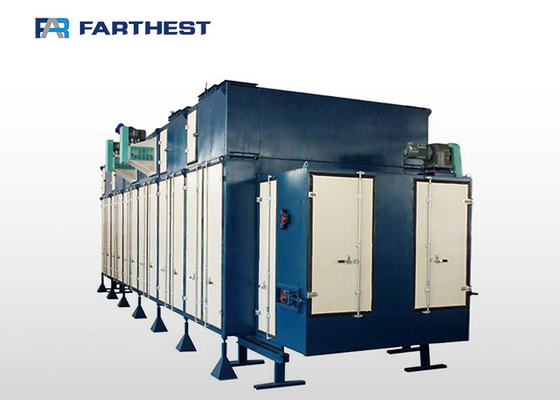

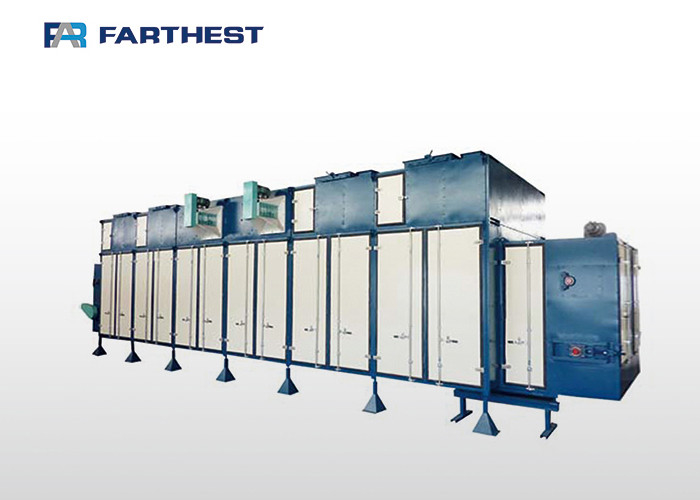

Horizontal Double Layer Belt Dryer Feed Extruder Machine For Extruded Crab Feed

Horizontal Double Layer Belt Dryer Feed Extruder Machine For Extruded Crab Feed

    • Horizontal Double Layer Belt Dryer Feed Extruder Machine For Extruded Crab Feed
    • Horizontal Double Layer Belt Dryer Feed Extruder Machine For Extruded Crab Feed
  • Horizontal Double Layer Belt Dryer Feed Extruder Machine For Extruded Crab Feed

    Product Details:

    Place of Origin: China
    Brand Name: FAR
    Certification: CE ISO9001
    Model Number: SHGW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: iron pallet
    Delivery Time: 45 days
    Supply Ability: 30 Sets per Year
    Contact Now
    Detailed Product Description
    Capacity: 1.5-5tph Bearing: SKF
    Material: Steel Warranty: 1 Year
    Voltage: 380 V Motor: Siemens
    Power: 28/38/48kw





    Circumference Dryer,Fluid Dryer and Postcook Dryer are also offered by Changzhou Farthest Machinery Co.,Ltd.



    Product Description

    Features

    1, Adopt international advanced swing laying bead, even laying and even moisture of feed.

    2, Tracks are made from stainless steel punched-plate, no sticking, anti-corrosion and cleaning.

    3, The machine is equipped two tracks, materials will come and go four times on the tracks, which make sufficient use of space, maximum improve drying efficient and evenly.

    4, Built-in heating and hot air circulative using system, which reduce stream consumption and cost.

    5, Entrances and exits of air are designed in different during sections, which control the temperature and moistures efficiently. Drying speed is adjustable, high quantity after drying.

    6, Adopt modularization designation, length and direction can be adjusted to demand, you can choose the tracks of 1.2m, 1.8m or 2.4m.



    Main Technical Parameters



    Model

    Capacity

    (t/h)

    Drying Area

    (m2)

    Width Of Belt

    (m)

    Power

    (kw)

    Water Removal

    (%)

    SHGW120×2

    1.5-2

    20

    1.2

    28

    15

    SHGW180×2

    3-4

    30

    1.8

    36

    15

    SHGW240×2

    4-5

    40

    2.4

    48

    15



    Details



      4P1060100 6
    P1050008
